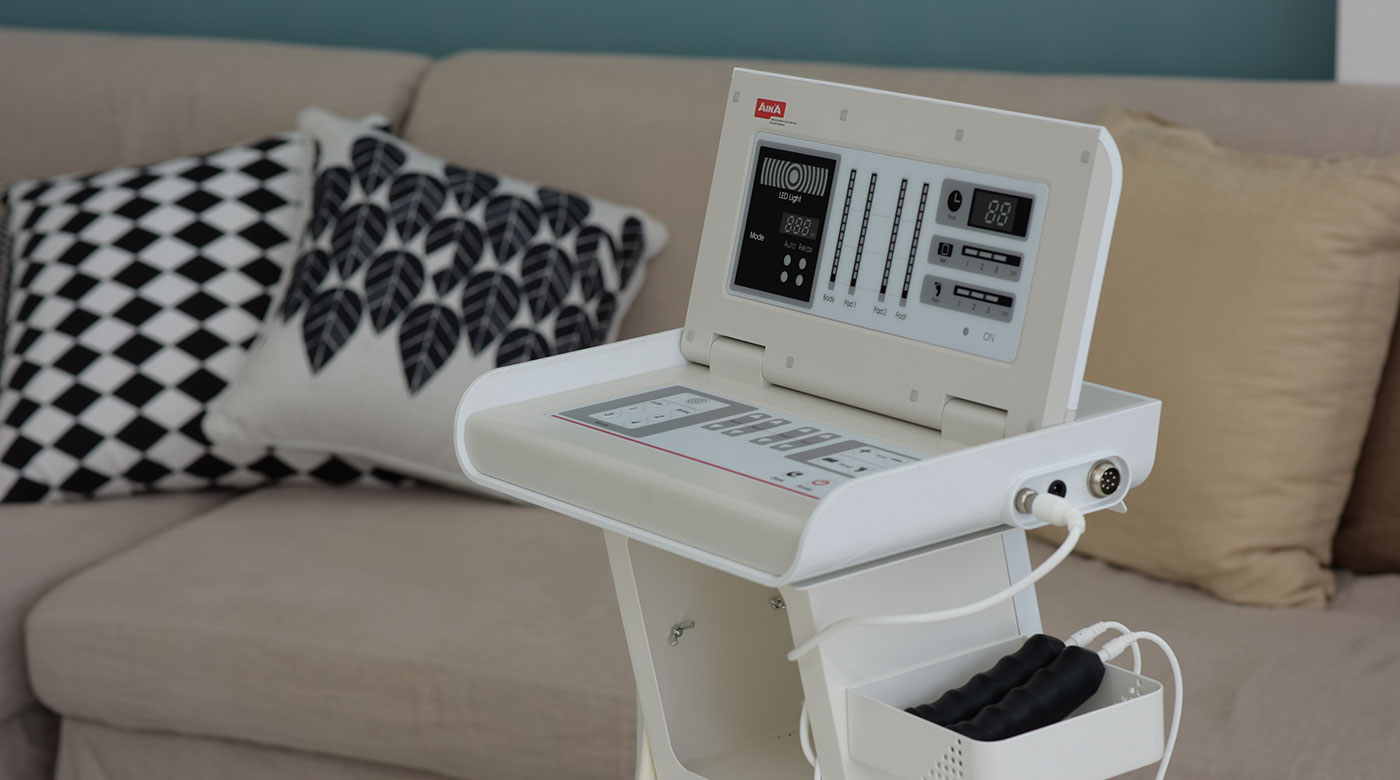

Smartron
Smartron is a healthcare device born from the fusion of two core technologies—low-frequency pulse technology and LED light therapy—developed with the support of a government R&D program.
-
Proprietary Core
Patents -
630nm, 830nmFeaturing
LED Light Therapy
Technology -
Multiple
Award Winner -
Variety of
Applicators
Point.1
core patented technologies.
-

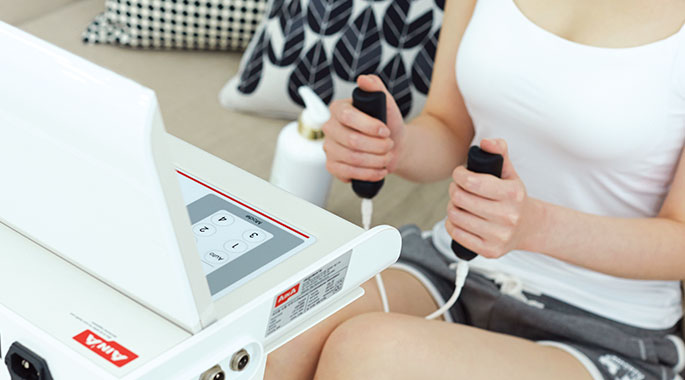

Patent No. 10-1100718Apparatus for Measuring Meridians Using Electrical Stimulation and a Method Thereof.This device applies low-frequency electrical stimulation to the hands, abdomen, and feet, utilizing repeated muscle contractions and relaxations to alleviate tension and relieve pain in the shoulders, back, and legs.
-

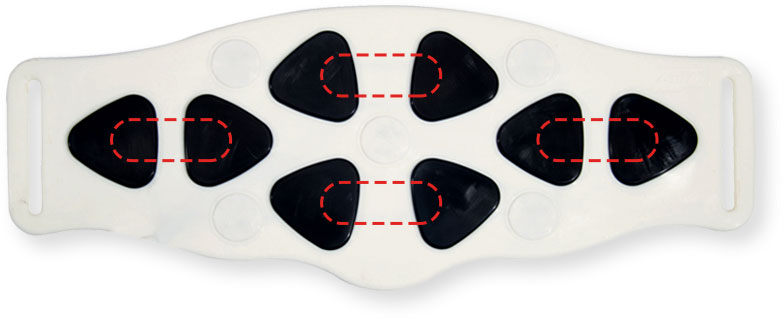

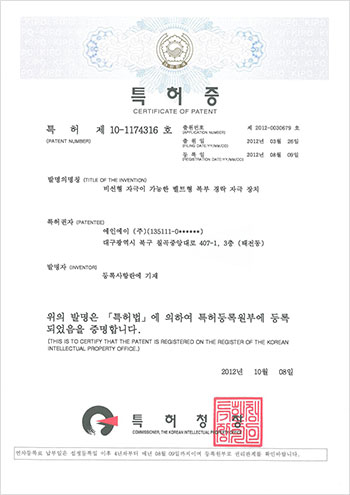

Patent No. 10-1174316A Belt-Type Abdomen Meridian Stimulation Apparatus Capable of Non-linear Stimulation.The 4-channel Spheroid Waveform stimulates the abdomen with a rotational pattern, providing a quick and effective response. This core patented technology is a Gold Medal winner from Malaysia's ITEX (International Invention, Innovation & Technology Exhibition).
-

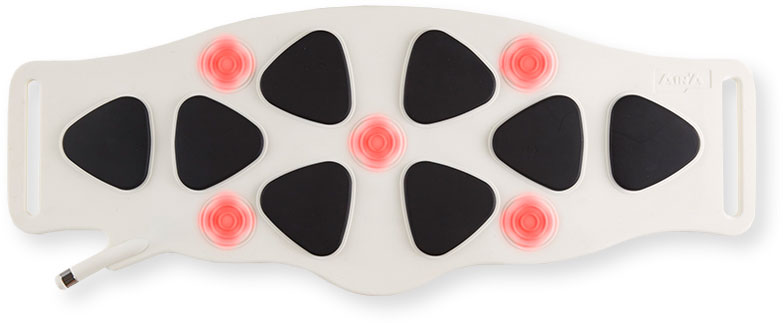

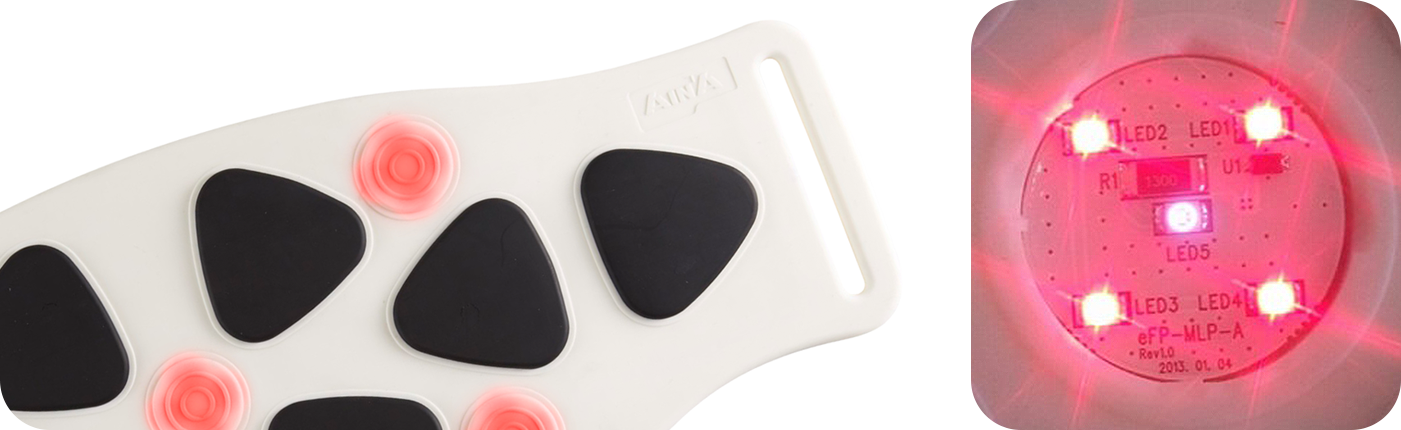

Patent No. 10-1174311A Belt-Type Abdomen Meridian Stimulation Apparatus Utilizing LEDs.Featuring a circular module that integrates a combination of various LED light wavelengths, this device delivers rapid and effective responses. This core patented technology was awarded the Gold Medal at the Seoul International Invention Fair (SIIF).
Point.2
The simultaneous emission of 630nm and 830nm wavelengths
ensures fast, effective results.
Point.3
-
49th Invention Day: Prime Minister's Commendation
-
Seoul International Invention Fair (SIIF): Gold Medal
-
International Invention, Innovation &
Technology Exhibition (ITEX)
in Malaysia: Gold Medal -
Taiwan Invention Association: Special Award
Point.4

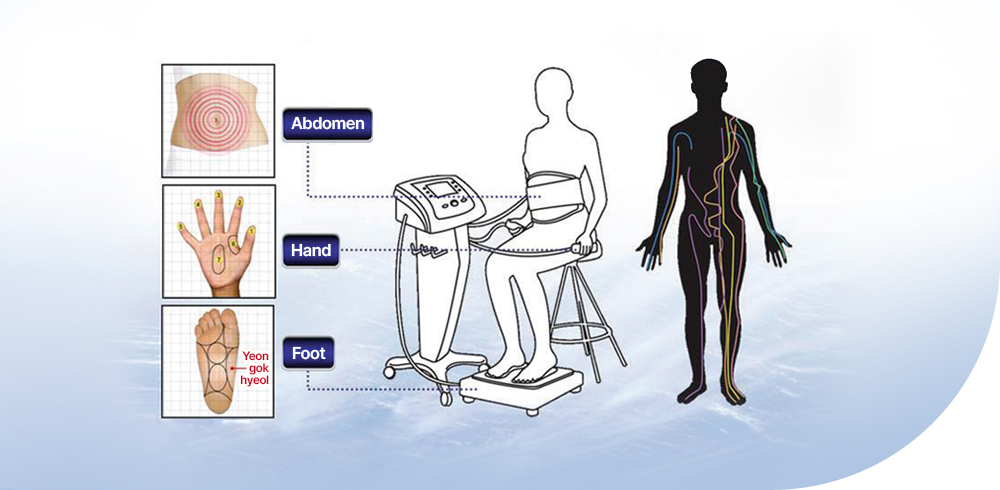

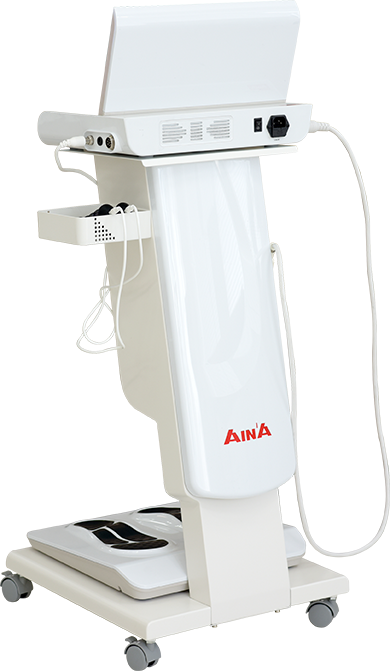

Full-body wellness can be managed through the hands, feet, and abdomen.
For targeted care, the neck pad, back pad, and LED hip pad enable health management for every part of the body.

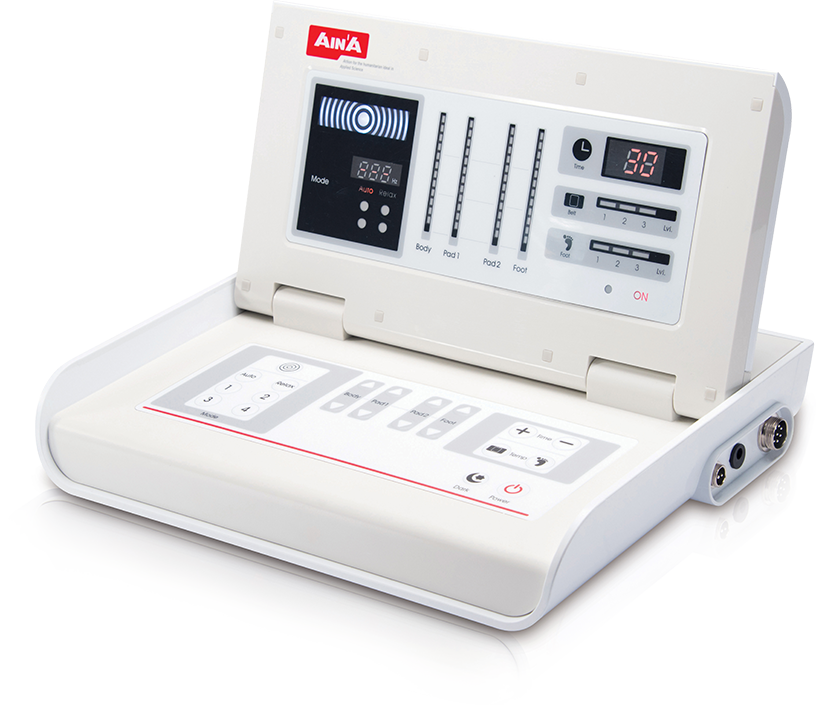

| Models | AINA-8000L1 and 1 other | Product Name | Personal Combination Stimulator [A83080.0(2)] |
|---|---|---|---|
| Rated Voltage | AC 220V , 60Hz | Power Consumption | 125VA |
| Dimensions | 364(W) x 270(L) x 60(H)mm | Main Unit Weight | 2.6kg |
| Intended Use | This device combines two functions, low-frequency stimulation and infrared irradiation, for the relief of muscle pain. A physician's prescription and guidance are required for its use. |
||
| Manufacturer | AINA CO., LTD. | Distributor | AINA CO., LTD. |
- This product is a medical device. Please carefully read the "Precautions for Use" and "Instructions for Use" before operating.
- To enhance product quality, design and specifications are subject to change without prior notice.
- This product is manufactured for domestic sale in Korea. Please be aware that if the product is taken overseas, after-sales service will not be available.
All in One Health Care

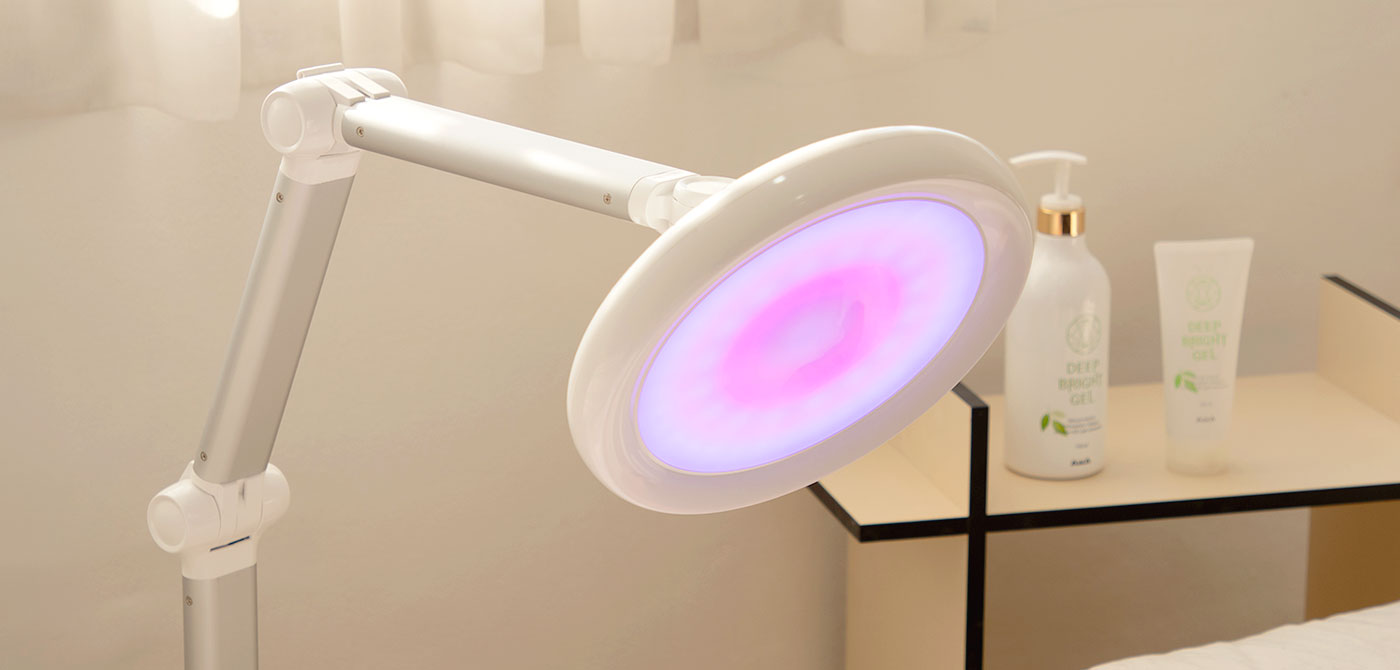

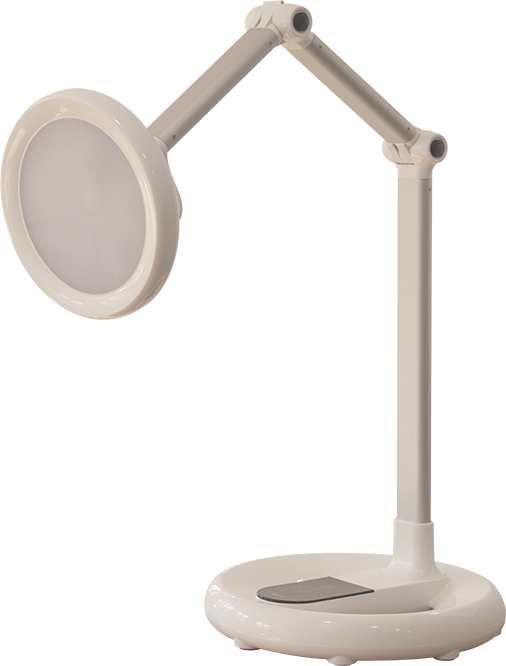

Duore Sun Ⅱ

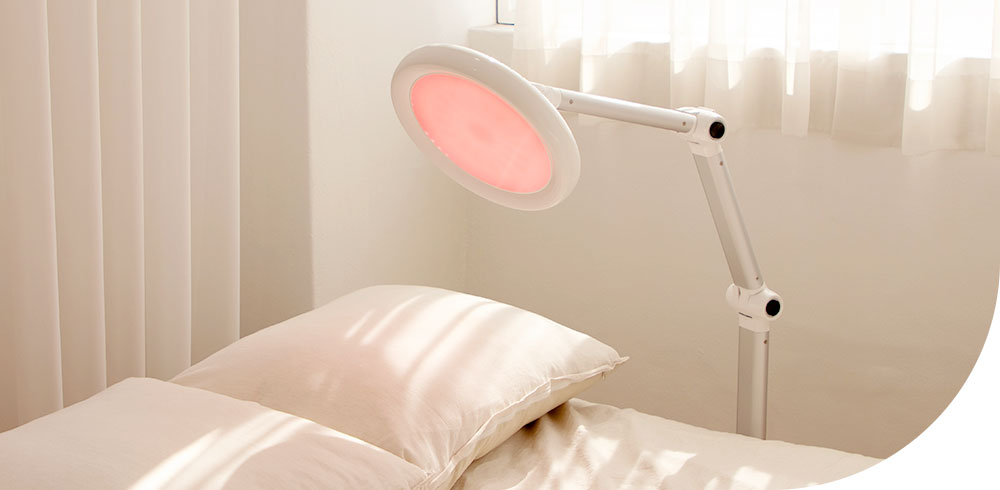

Duore Sun Ⅱ, combining ergonomic
design with LED light therapy technology.
Experience comfortable and effective care for any part of your body, now more easily than ever.
-
Featuring
LED light therapy technology -
Ergonomic
Design -
Proprietary
Core Patents -

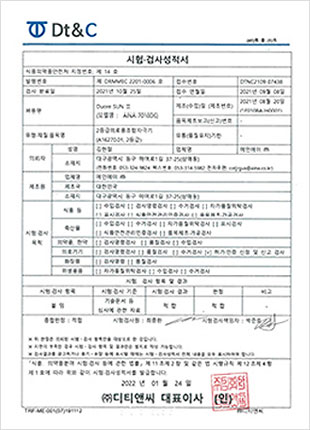

Product Test
Report Acquired
Point.1
LED light therapy technology.

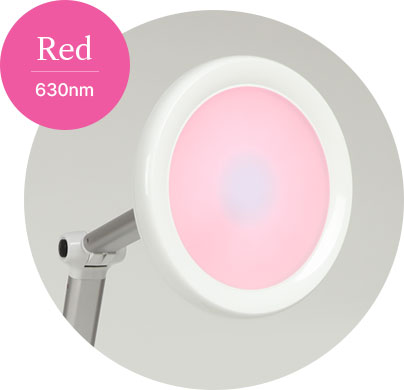

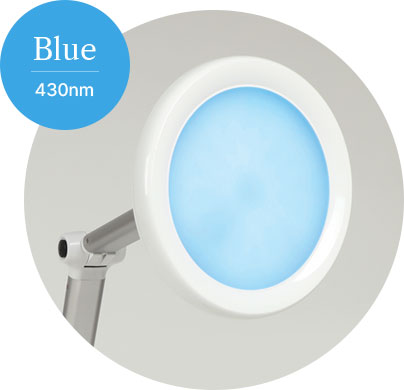

Customized LED Care by Wavelength

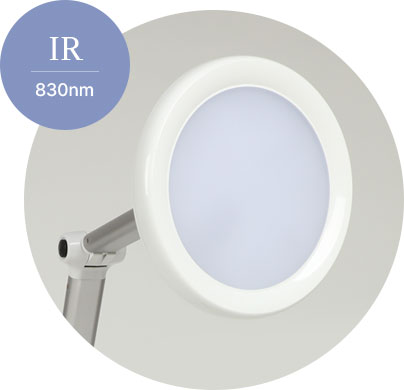

The ability to use Blue, Red, and Infrared (IR)
wavelengths, either individually or in combination,
delivers rapid and effective results.
Point.2
Superior Ease-of-Use
The combination of a lightweight body and a light source with
unrestricted height adjustment ensures that full-body treatments
can be performed with ease.
Point.3
-

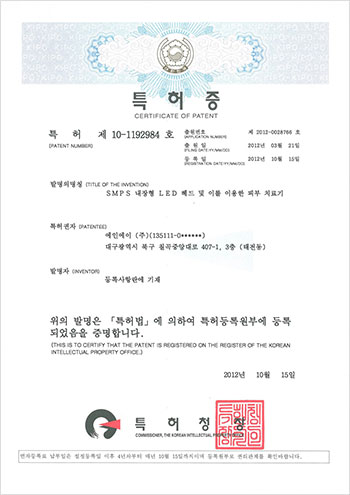

Patent No. 10-1192984An SMPS-Integrated LED Head and a Skin Therapy Device Using the Same.
Point.4
-
Certificate of Electromechanical
Safety -
Certificate of EMC
(Electromagnetic Compatibility) Safety
Duore Sun Ⅱ

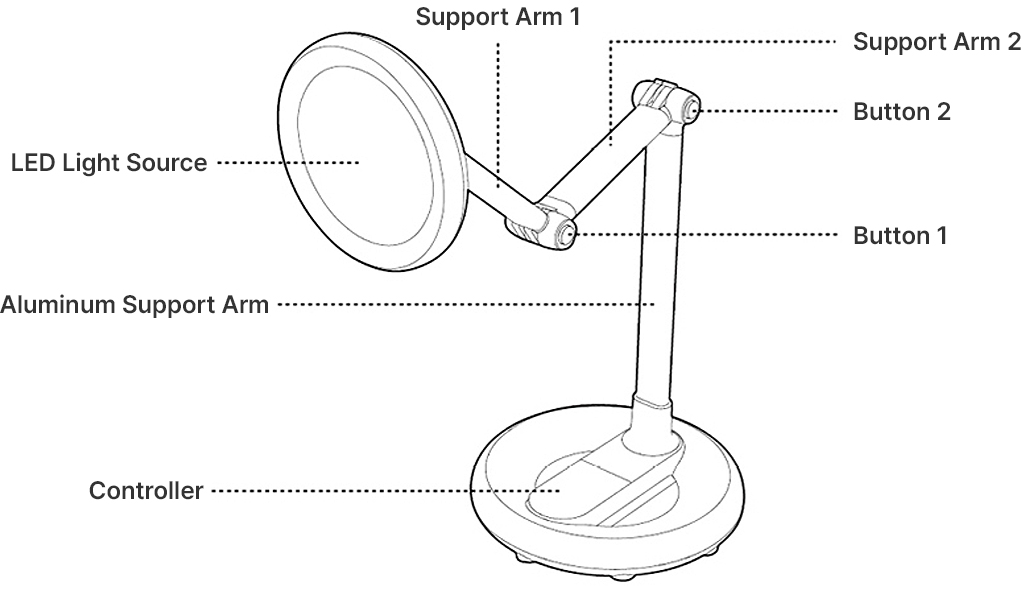

Quick Start Guide

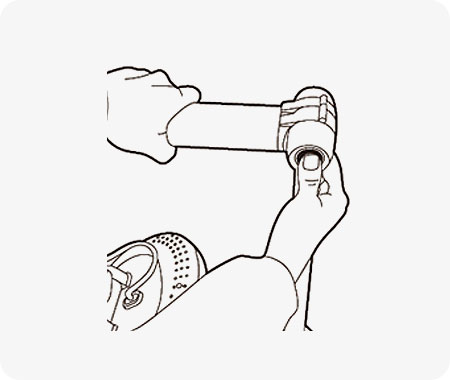

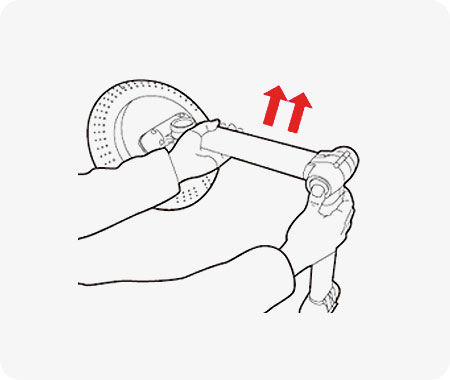

- Grasp Support Arm 1 and lift it slightly upward.

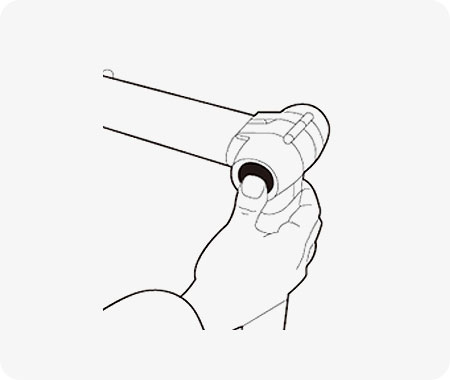

- Press 'Button 1'.
- While holding down 'Button 1', move the support arm up or down to adjust it to the desired height.
- Grasp Support Arm 2 and lift it slightly upward.
- Press 'Button 2'
- While holding down 'Button 2', move the support arm up or down to adjust it to the desired height.
- Position the device so the controller and the head unit are aligned.

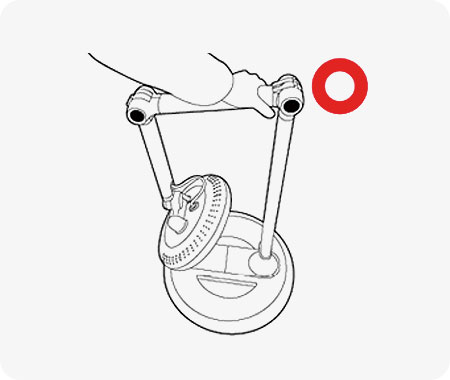

- Grasp Support Arm 1 to move the device to your desired location, then set it down on a flat, level surface.

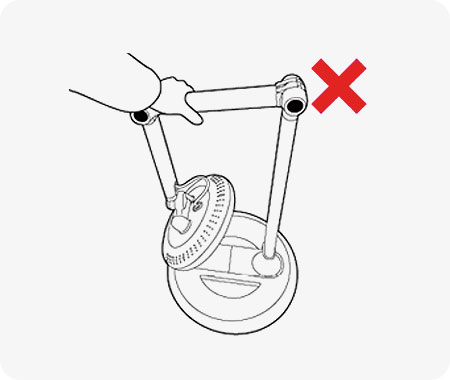

- Incorrect Hand Position
※ To move the unit safely, you must grasp it near 'Button 2'.

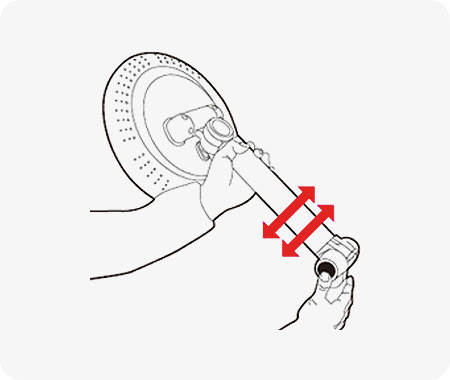

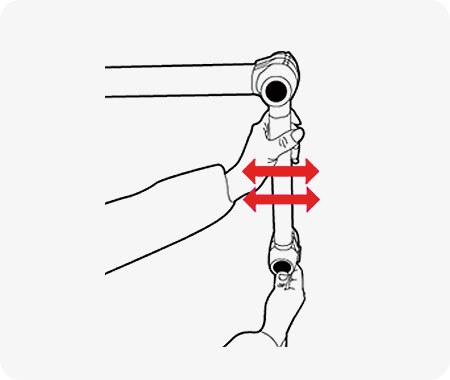

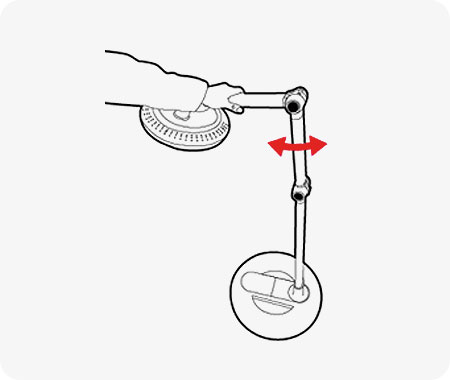

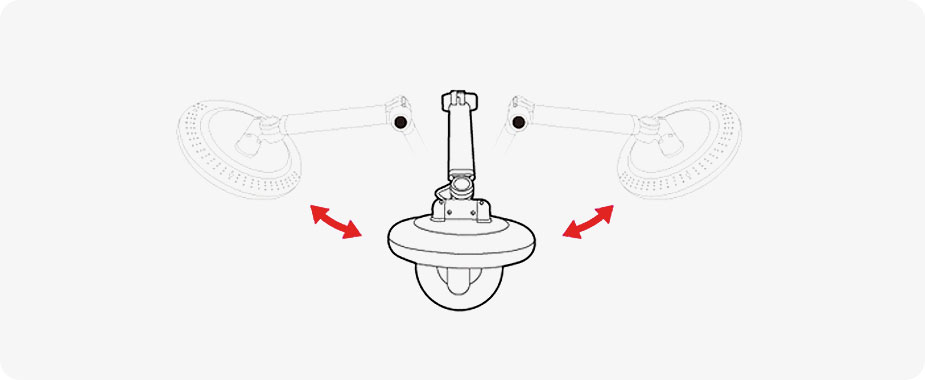

- Hold Support Arm 1 and move it to the left or right to adjust its position.
- The arm has a horizontal rotation range of 180 degrees; however, be aware that forcing the rotation can cause the unit to tip over.
| Models | AINA-7010DS | Product Name | Class 2 Medical Combination Stimulator | ||
|---|---|---|---|---|---|
| Item License No. | No. 22-4318 | Rated Voltage / Rated Frequency | 100-240V~,50/60Hz | ||
| Type and Degree of Protection Against Electric Shock |
Class I, No APPLIED PART | Power Consumption | MAX 40VA | ||
| Output Type | Blue, Red, and Infrared (IR), all of which operate via continuous emission. | Treatment Duration | 10 - 60 minutes (Adjustable in 10-minute increments) ※ For safety against overheating, do not use for more than 30 minutes at a time. (rest for 5 minutes) |
||
| Performance | Low-Level Light Therapy Device | (1)Output | 1) BLUE : 4.3mW/㎠ ± 20% 2) RED : 2.9mW/㎠ ± 20% | ||
| (2)Wavelength | 1) BLUE : 465nm ± 20% 2) RED : 630nm ± 20% | ||||
| Infrared Irradiator | (1)Output | 1) IR : 5.6mW/㎠ ± 20% | |||
| (2)Wavelength | 1) IR : 840nm ± 20% | ||||
| Dimensions | 400x400x660mm | Main Unit Weight | 7.5kg | ||
| Intended Use |
This device is an irradiator that aids in the treatment of an affected area by applying low-level light, which is generated by passing an electric current through LEDs. 1) Low-Level Light Therapy Device: This low-level light therapy (LLLT) device aids in the treatment of affected areas by irradiating them with a light beam at an energy density below 20J/cm2 or 2W/cm2 (excluding infrared and ultraviolet wavelengths). The device's light emission is composed of two wavelengths: 465nm and 630nm. 2) Infrared irradiator: This infrared irradiator is a device designed to relieve muscle pain by applying infrared energy to the human body. The device operates at an emission wavelength of 840nm. |
||||
| Manufacturer | AINA CO., LTD. | Distributor | AINA CO., LTD. | ||
- This product is a medical device. Please carefully read the "Precautions for Use" and "Instructions for Use" before operating.
- In the interest of quality improvement, the design and specifications are subject to change without notice.
- Software Version : DS-7010 V.1.0.0
